Advanced PCB Diagnostics

Overview

This module takes you deep into the process of diagnosing faults on laptop motherboards using professional-grade techniques. You will move beyond surface-level symptoms and learn to interpret electrical signals, trace power rails, and identify component failure at the pad level.

By the end of this module you will be able to independently diagnose the majority of common laptop faults — including no-power conditions, display failures, and intermittent shutdowns — without relying on proprietary diagnostic software.

Learning Objectives

After completing this module, you will be able to:

• check_circle Read and interpret a partial schematic to locate a suspect circuit block on an undocumented board.
• check_circle Use a multimeter in diode mode to map the power tree and identify shorted rails.
• check_circle Perform signal tracing with an oscilloscope probe to detect missing clock or data signals.
• check_circle Distinguish between component-level faults (capacitor, MOSFET, IC) versus trace/via damage.
• check_circle Document findings in a structured fault report for handoff or customer communication.

Required Tools & Equipment

All items below are available on your assigned bench. Do not borrow from adjacent benches without permission.

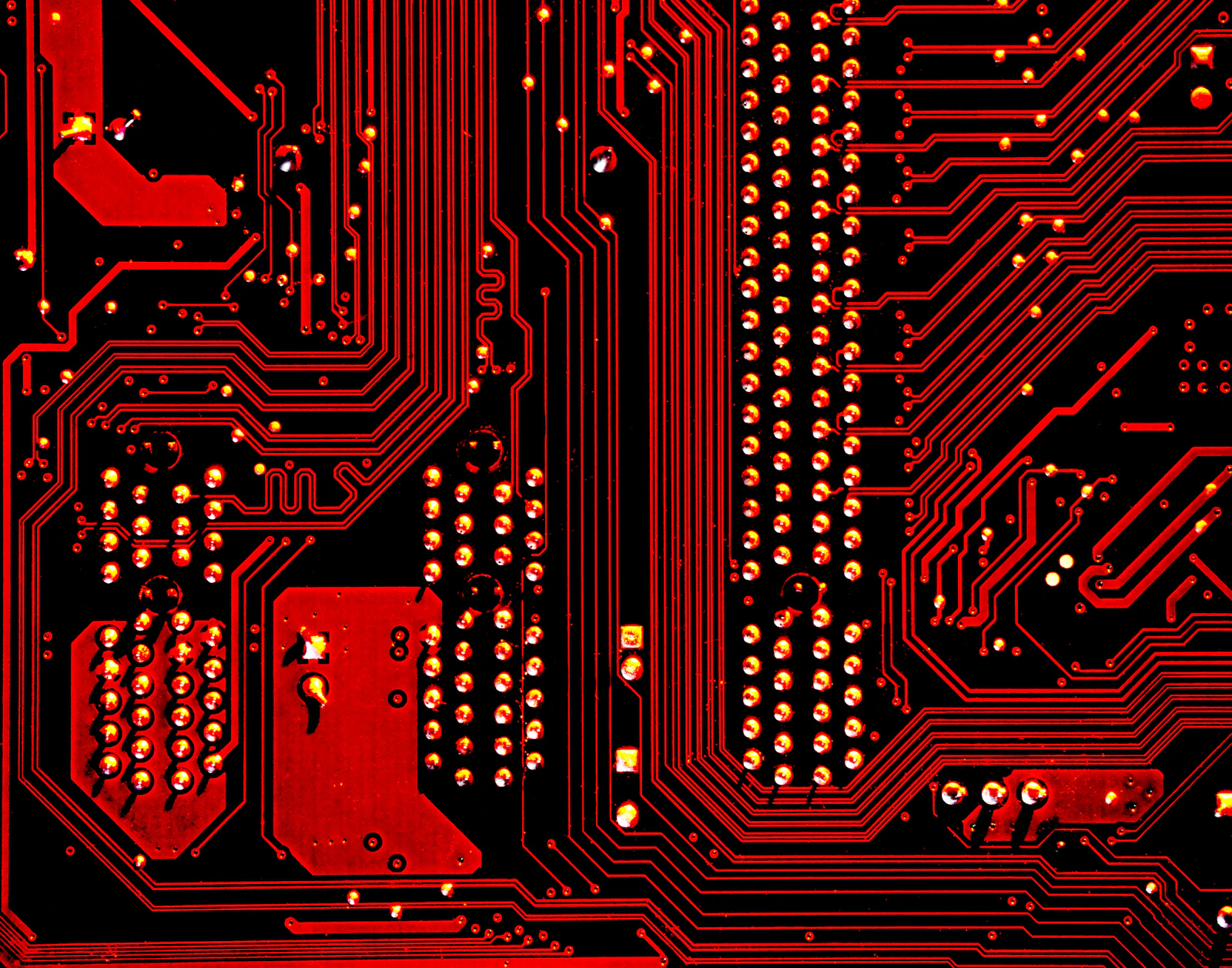

Theory: Reading a PCB

Modern laptop motherboards are typically 4–8 layer PCBs. The top and bottom copper layers are visible, but inner power and signal planes are hidden. Understanding the visible layer geometry lets you infer buried trace routing.

Signal Flow & the Power Tree

Every laptop board has a defined power sequencing order — a strict timing hierarchy that gates each power rail based on the one before it. A fault anywhere in this chain causes everything downstream to remain off. The common sequence for Intel-based systems is:

VBAT (battery)
  └─► VSYS_3V3 (system 3.3V)
        └─► EC_ON / S5 state
              └─► VCORE_CPU (via VRM)
                    └─► VDDQ_MEM (memory rail)
                          └─► PCH_CORE
                                └─► S0 (fully on)

When a board fails to POST, your first task is to identify the last rail that is present and work downstream from there.

Common Failure Modes by Symptom

Diagnostic Procedure

Follow this structured procedure for every board. Skipping steps leads to misdiagnosis. Each step builds on the previous.

Step 1 — Visual Inspection

Before connecting any power, examine the entire board surface under the stereo microscope at 10× then 40×. You are looking for:

• Burnt or discolored components — brown or black residue, swollen capacitor tops
• Missing components — empty pads where a resistor or capacitor should be
• Physical damage — cracked PCB substrate, lifted pads, corroded traces
• Liquid damage markers — white calcium deposits, green copper oxidation

Step 2 — Continuity & Diode Mode Testing

With the board unpowered, use your multimeter in diode mode to test the main power rails against ground. A healthy rail shows a forward voltage drop of 0.3–0.7V. A reading near 0.000V indicates a short to ground.

VSYS (19V rail) → GND:    0.45V  ✓  healthy
VCORE (1.0V)   → GND:    0.38V  ✓  healthy
VDDQ (1.35V)   → GND:    0.000V ✗  SHORT — investigate VRM / caps

If you find a short, inject a small current (100–200mA) from the DC PSU into the shorted rail at a very low voltage (0.5V). Use a thermal camera or just touch-feel to locate the component that gets hot — that is your culprit.

Step 3 — Signal Tracing with Oscilloscope

Once all DC rails confirm healthy, connect power and probe key signals. Set your oscilloscope to DC coupling, 100ms/div time base, and appropriate voltage scale.

• Probe the BIOS clock output — should show a clean 25 MHz or 48 MHz square wave
• Probe the CPU RESET_N line — should go HIGH within 100ms of power-on
• Check DDR data lines for activity — any toggling indicates the CPU is trying to train memory

Assessment

This module includes one practical assessment and a short written component. Both must be passed to unlock Module 05.
